Profile Wire Panel Screens-V-Shaped and Tri-wire

 August 19, 2017

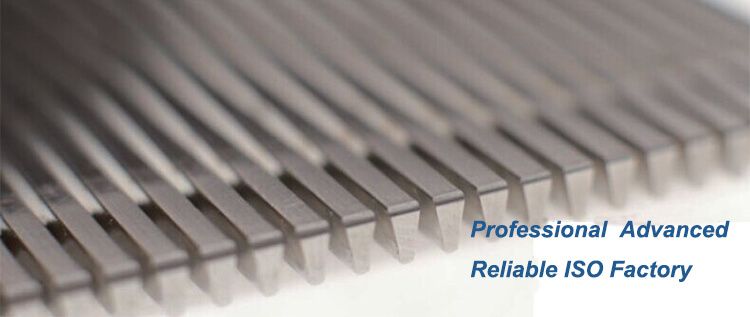

stainless steel v wire sreen wedge wire grate
  August 19, 2017

Companies that are new in the industry or looking for industrial grade panel screens might find it confusing when faced with several options when it comes to the panel screen of their choice. Profile wire panel screen has different names depending on the industry that they are used. That said, the profile screen is popularly known as wedge wire, tri-wire or v-wire in almost all industry making it easier for many to familiarize themselves with these technical terms.

Profile Wire Panel Screen

Profile wire panel screen is popular with many industrial companies because of its efficient solution when it comes to separating solid and liquid particles. Aside from retention, the panels can also be custom made to ensure efficient filtration of media, dewatering and collection as well as an effective solution for distribution. Hebei High Top can customize the panel screens depending on the client’s specifications and designs.

Originally, screens are produced in a flat panel and cylinder shaped and the shapes offer several advantages and benefits. Flat panels have greater strength, an extended service life and the precision opening space makes for an uninterrupted flow. Cylindrical panels on the other hand avoid clogging because of its large open area and uninterrupted flow, making it the preferred choice for the food industry as well as for water treatment facilities.

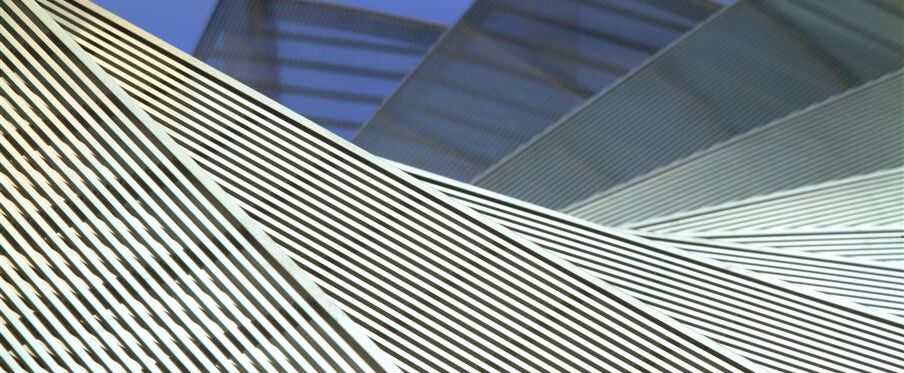

v wire screen for stair and ladder

Selecting Your Profile Wire Screen

There are several factors that companies need to consider when purchasing or designing their own profile wire screen(s). Aside from the cost or budget, one should consider the purpose or use for the wire screens. Water treatment companies, for example, should consider the thickness and the strength of the support rods of the wire screens to prevent any accidents such as leaks. Petrochemical companies on the other hand, should consider coating their panels with non-corrosive/abrasive substances to ensure that the panels will not corrode when used in chemical applications. The cost of the panel screens depends on these factors as well as other added features. Our expert engineering team can help customize, design or give feedback on the customer’s specifications and designs to ensure that quality is not compromised when making the prototype.

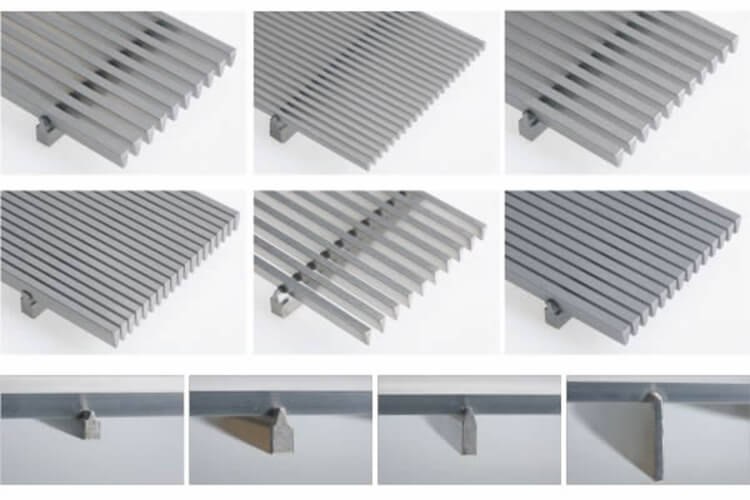

v wire screen panel

Materials Used

As profile panel screens are usually heavily used, it is important that the quality of the panel screens are advanced and can withstand pressure. Hebei HighTop uses 304 stainless steel to make our panel screens. Although other alloy materials are available, using stainless steel grade material ensures that not only can the panel screen withstand pressure, it is also protected from harmful chemicals and rust that develops when metal is exposed to liquid and other chemical components. For the petrochemical industry, it is recommended to add abrasive coatings to the panel screens for added protection and extend the service life of the panel screens.

Panel screens can be reinforced to add support to the screens which is a must for many industrial companies that make use of the equipment heavily such as in the mining industry. Frames can be angle welded to the panel’s side(s) to increase support.
